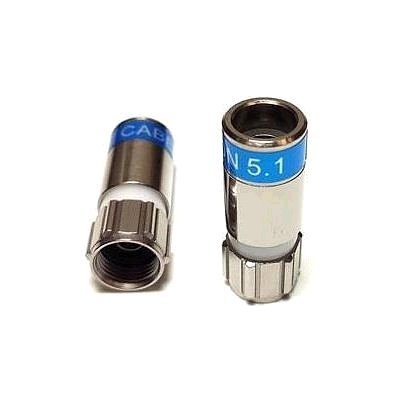

F connector Cablecon F-56-CX3 5.1-7 mm Compression

Top compression connector Cabelcon.
It finds use mainly for outdoor installations-it is waterproof.
This type is suitable, for example, for the Belden H125 coaxial cables, and others with this diameter.
Connector size 5.1mm.
Special pliers are required to press the connector.
Cabelcon CX3 compression pliers are the most used.
Simple installation, smooth design.
Working temperature-40 to +85 oC.
Easy identification-dimensions and type are stamped on the body of the connector.
Freely swivel matrix.
O The ring in the front is provided by a waterproof connection.
Standard dimensions of cable stripping 6.5/6.5 mm.
Operating (measured) to 3 GHz with excellent results.
Standard compression tools (Ex/SNS/US).
Excellent shielding also in the reverse direction.
Waterproof (IPX8*)-(30m/8h).
Corning Cabelcon NitintM-6.
Tensile strength much better than cable strength.
Method of stripping cables stamped on the body of the connector.
Cabelcon connectors are recommended for those installer who care about high quality and maintenance of their installations.
Cabelcon connectors are one of the highest quality connectors in the world.
VO packaging 100 pcs.
